はじめに こんにちは。Healthcare Innovation Group（HIG）の福島です。春の入門祭り2026 の7日目の記事です。
Claude Design、最近話題になっていますね。
以下は上記記事の引用です。
Claude Design は「見た目を作って終わり」ではなく、Claude Code への橋渡しまで考えられています。
これを見た時に思いました。インフラ構成のお絵描きからリソース実装までを、Claudeで一本化できるのではないか と。
そこで、この記事ではClaude DesignとClaude Codeを使い、以下の一連の流れを検証します（前提として、インフラリソースはAWSに構築し、IaCツールはTerraformを利用します）。
曖昧な要件からAWS構成図を作成する
対話しながら構成図を修正する
確定した構成図をもとにTerraformコードを生成する
生成されたTerraformコードをレビューする
実際にAWSリソースを構築できるか確認する
AI活用時に人間がレビューすべきポイントを整理する
今回構築するインフラ構成 今回の主目的は、Claude DesignでAWS構成図を作成し、それをもとにTerraformコードを生成することなので、インフラ構成自体は最小構成とします。
インターネット公開のWebサービス
ALB経由でECS Fargate上のアプリケーションにアクセスする
ALB、ECSタスクは複数AZのパブリックサブネットに配置する
最低限のセキュリティグループを設定する
本番構成ではECSタスクをプライベートサブネットに配置するのが一般的ですが、今回は低コストな検証環境としてパブリックサブネットに配置しました。
今回作成する主なAWSリソースは以下です。
VPC
Public Subnet × 2
Internet Gateway
Route Table
Security Group
Application Load Balancer
ECS Cluster
ECS Service
ECS Task Definition
IAM Role
CloudWatch Logs
ステップ1： 要件から設計資料・AWS構成図を作成する まずはプロジェクトを作成します。

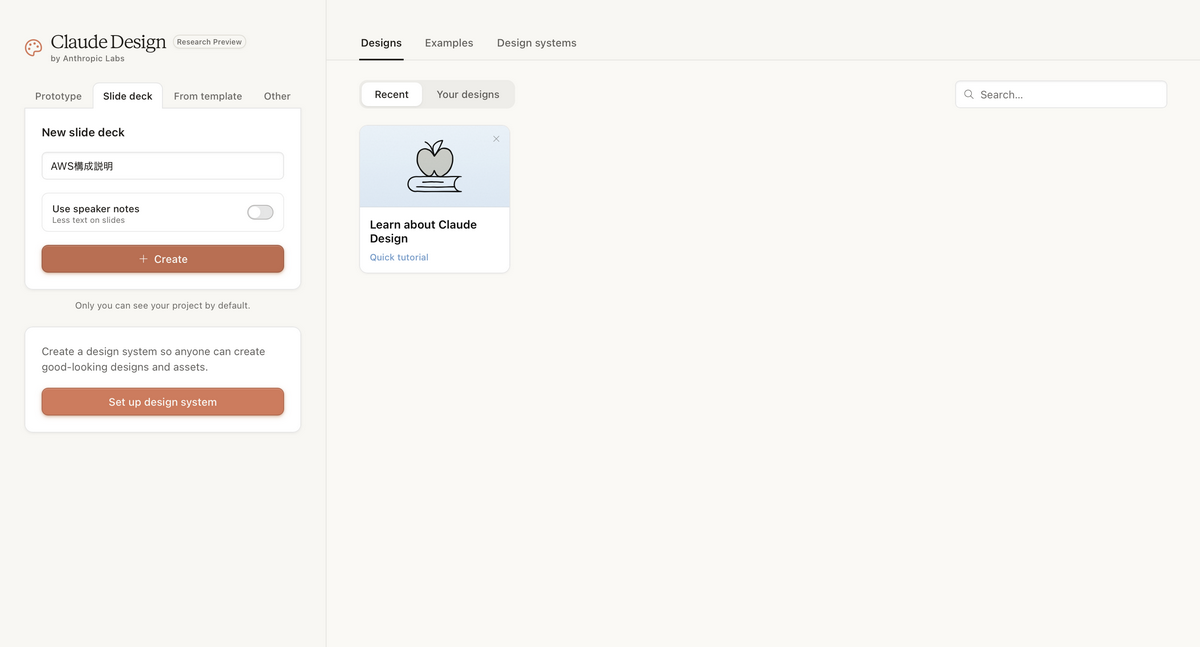

実務では、構成図と合わせて設計の前提や目的、設計内容を整理することが多いので、今回はスライドを作成します。左ペインの”Slide deck”タブを選択し、名前を入力してCreateボタンを押下します。
プロンプトに以下の内容を入力します（「今回の検証・設計内容」章は本記事前半の内容をそのまま貼り付け）。

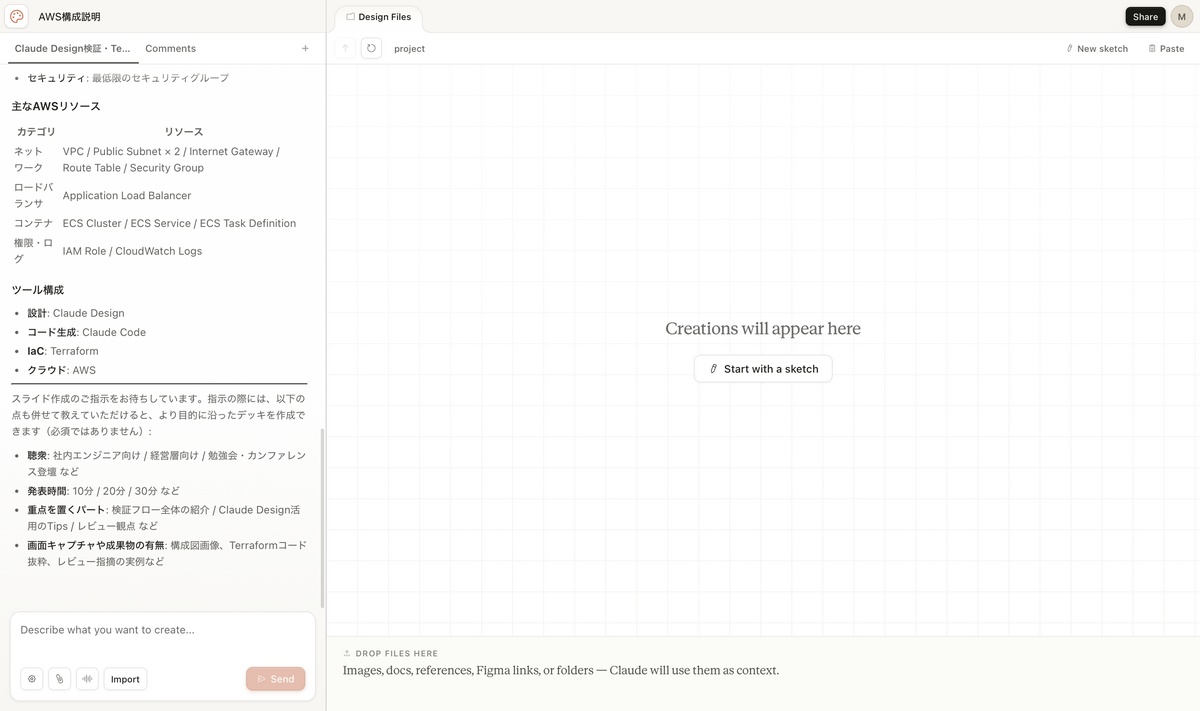

まずは検証・設計内容のみ確認してくれました。
続いて、以下のプロンプトでスライド作成指示を出します。

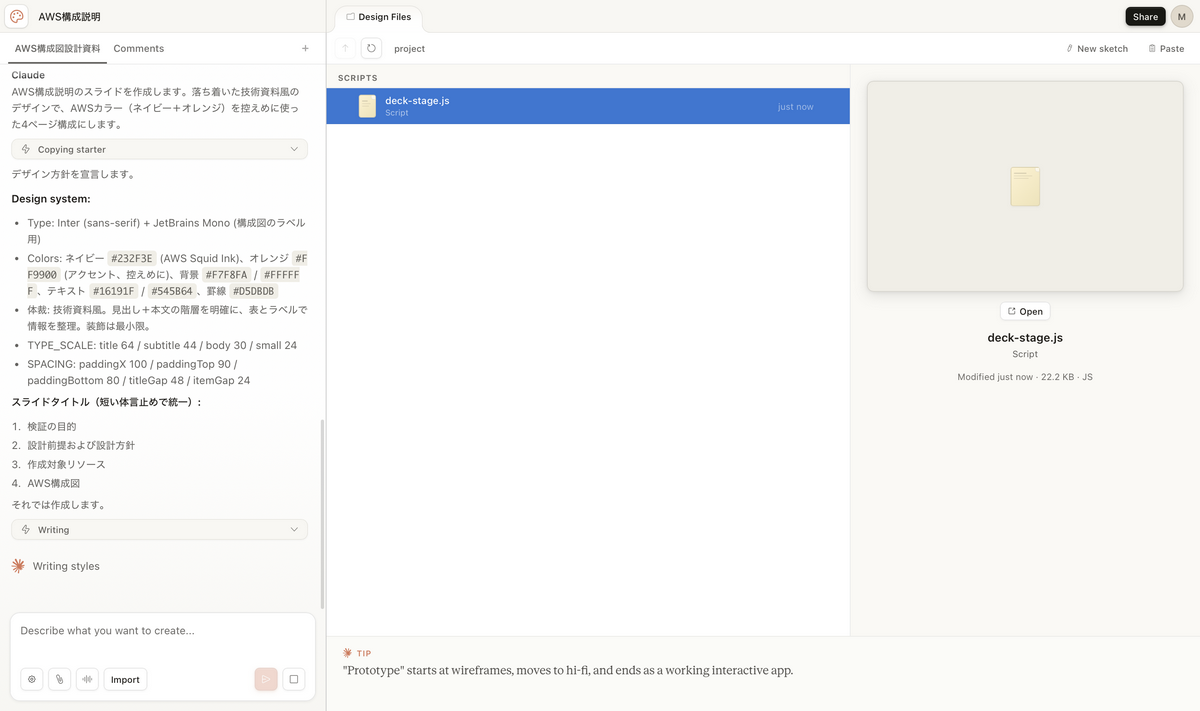

スライド作成が始まります。

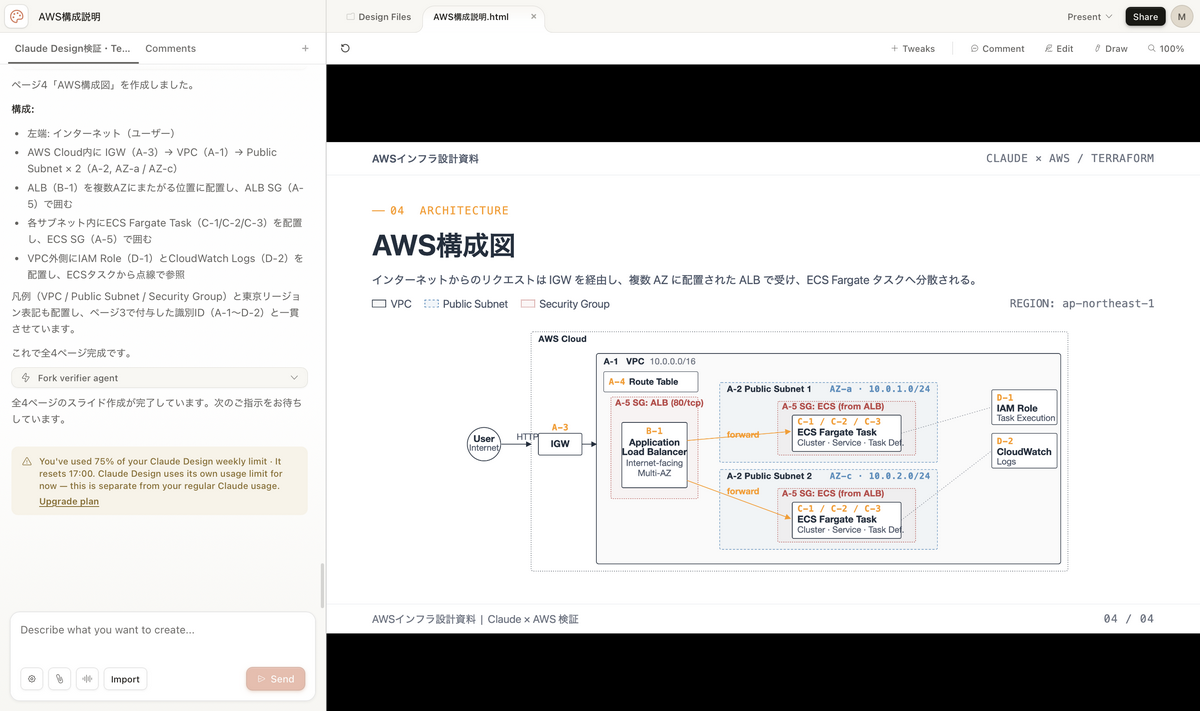

作成が完了しました！

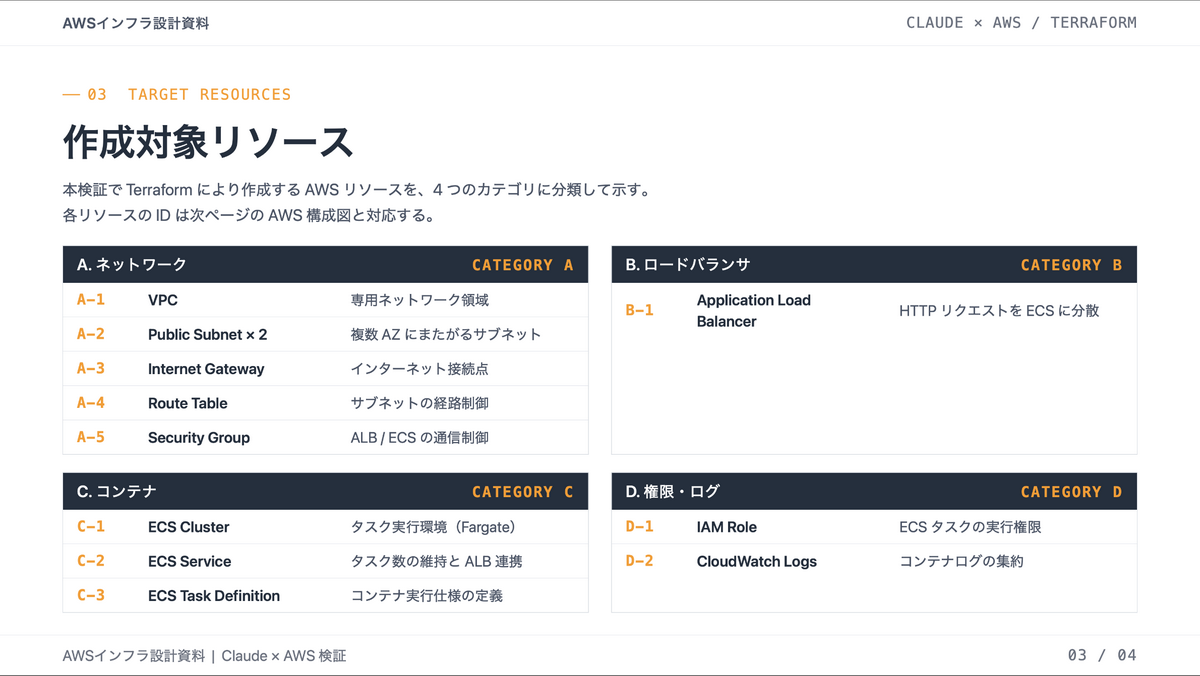

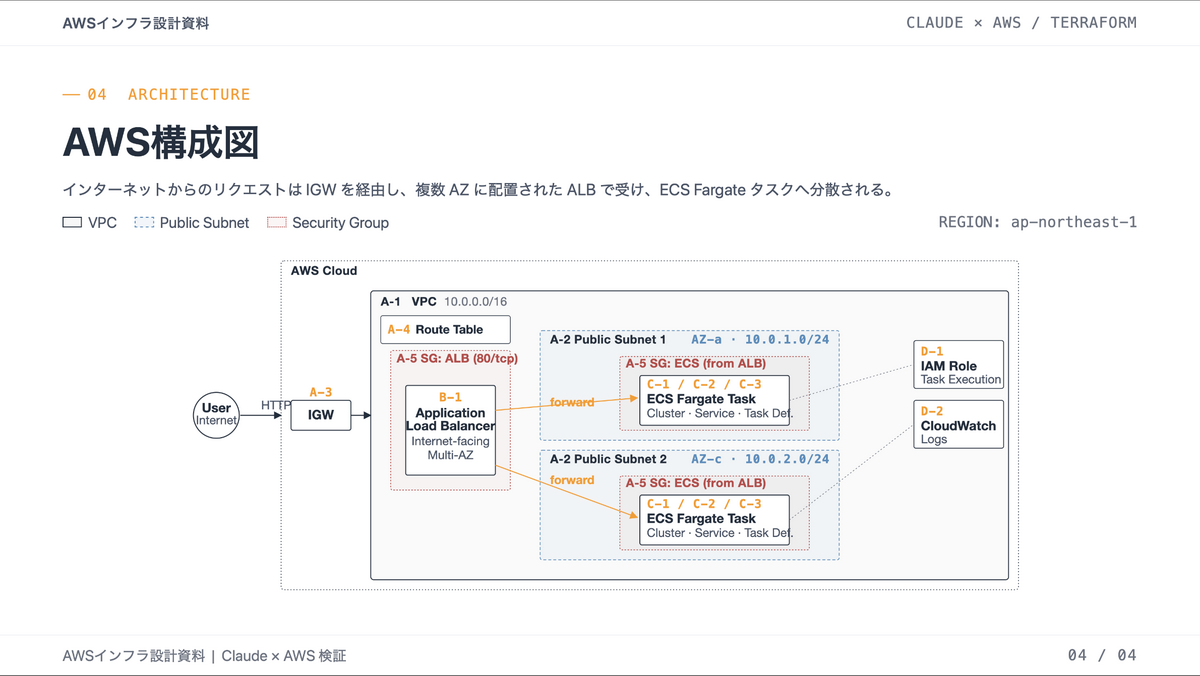

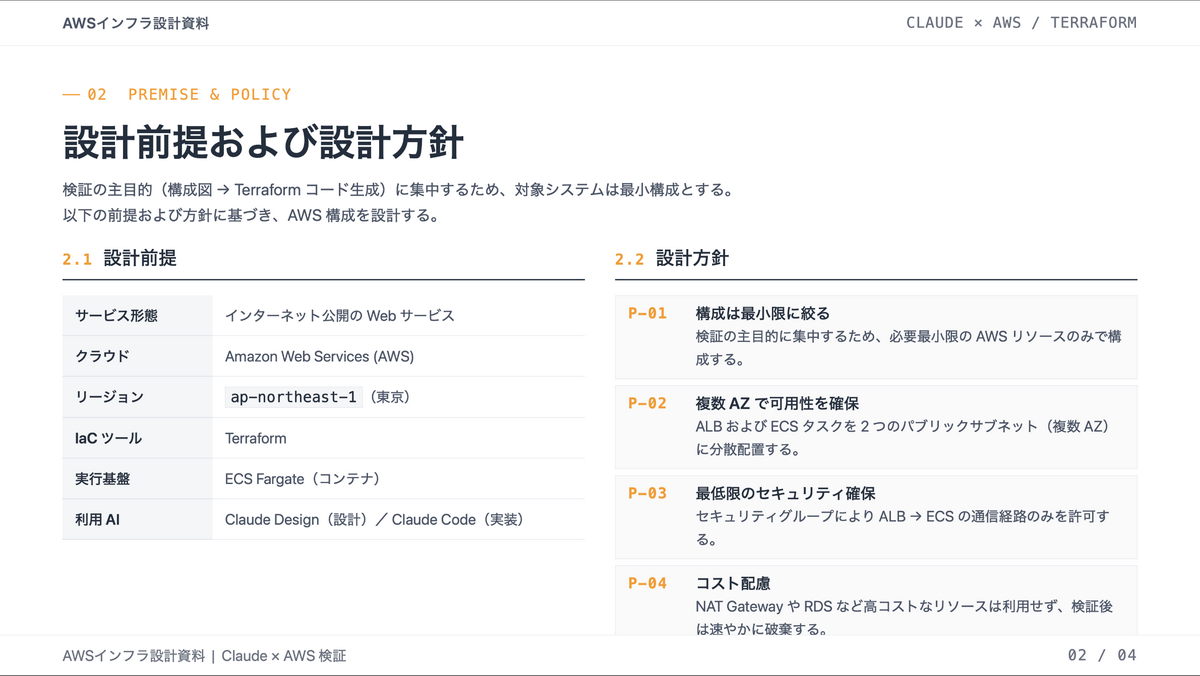

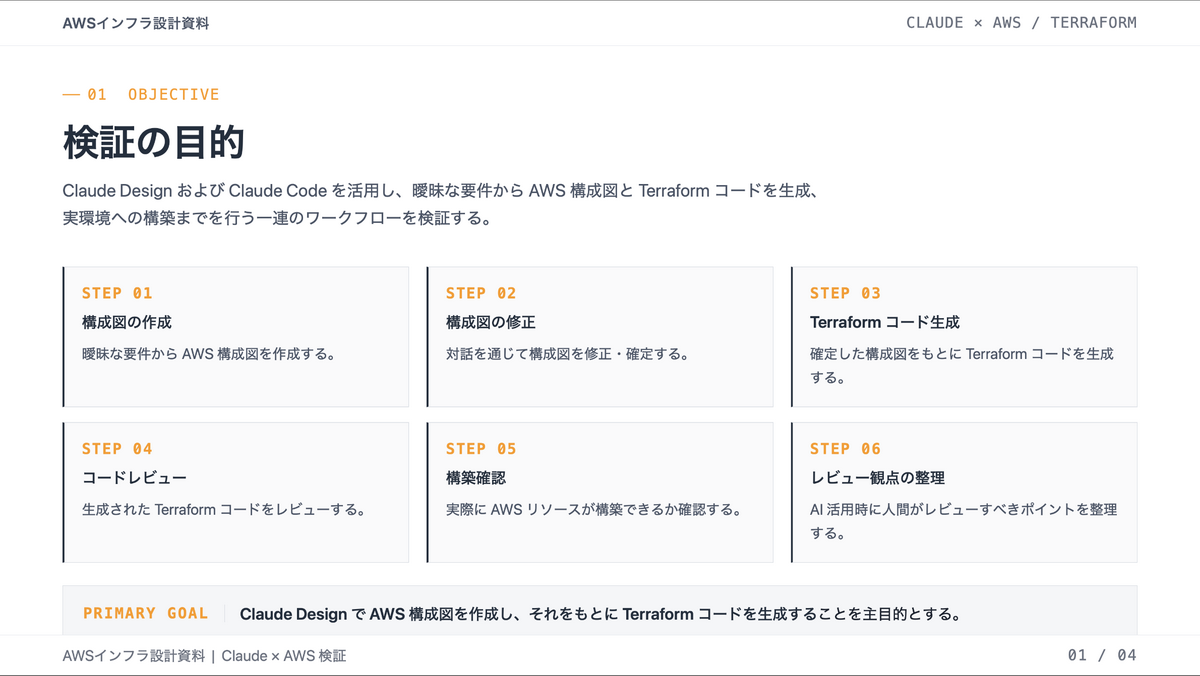

以下が作成されたスライド4ページ分です。
指示に従い、検証・設計内容を忠実にスライドに反映してくれています。

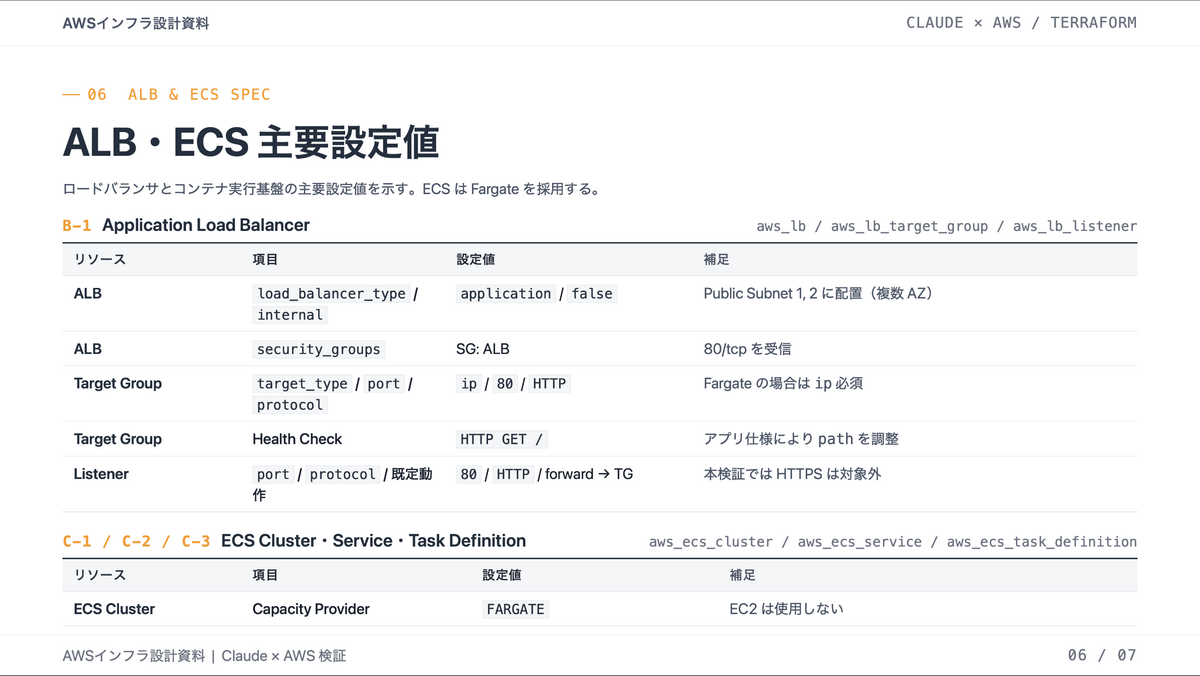

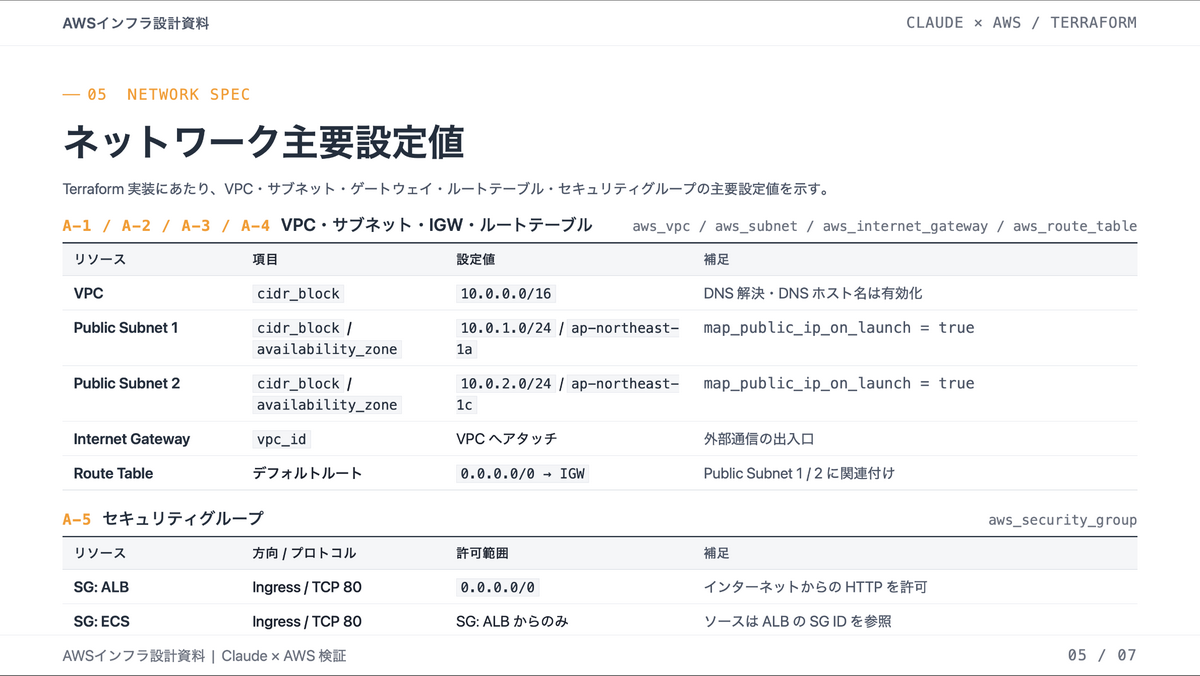

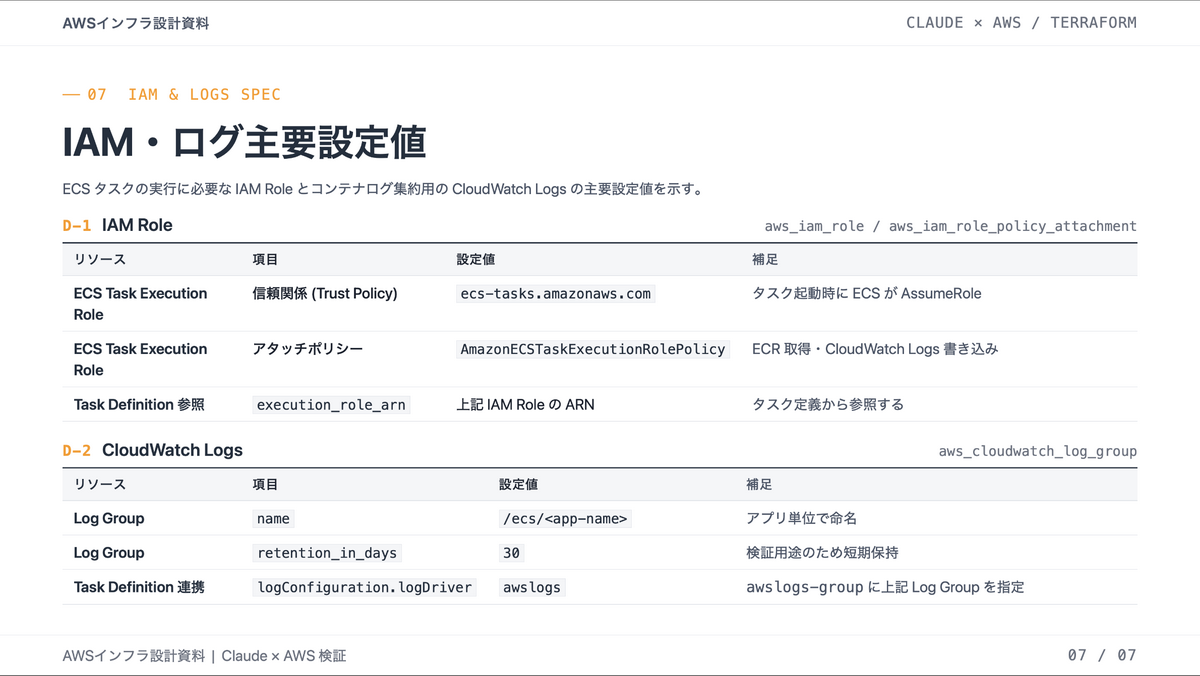

続いて、以下プロンプトで各リソースの主要設定値を整理してもらいます。
Claude Designには使用量の週次リミットがあり、到達してしまいそうだったためスライド作成はここまでとします。
ここからは、Claude DesignがまとめてくれたAWS構成および各リソースの設定値をベースに、Terraformコードを作成していきます。
aws sts get-caller-identity terraform version

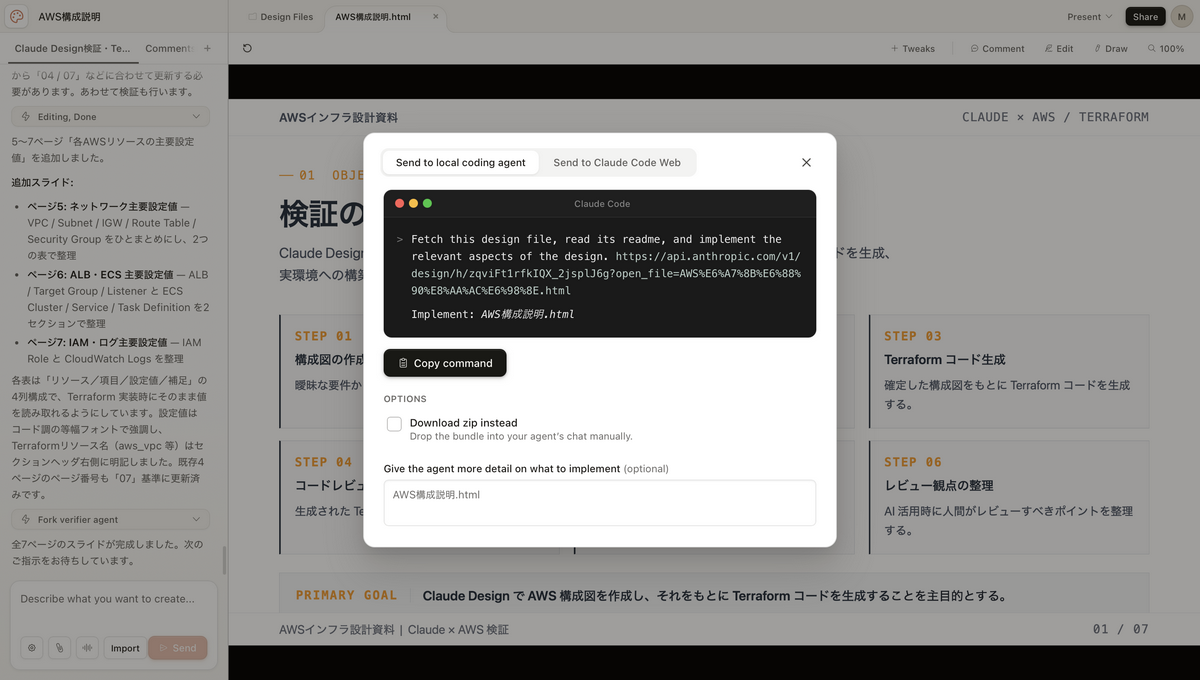

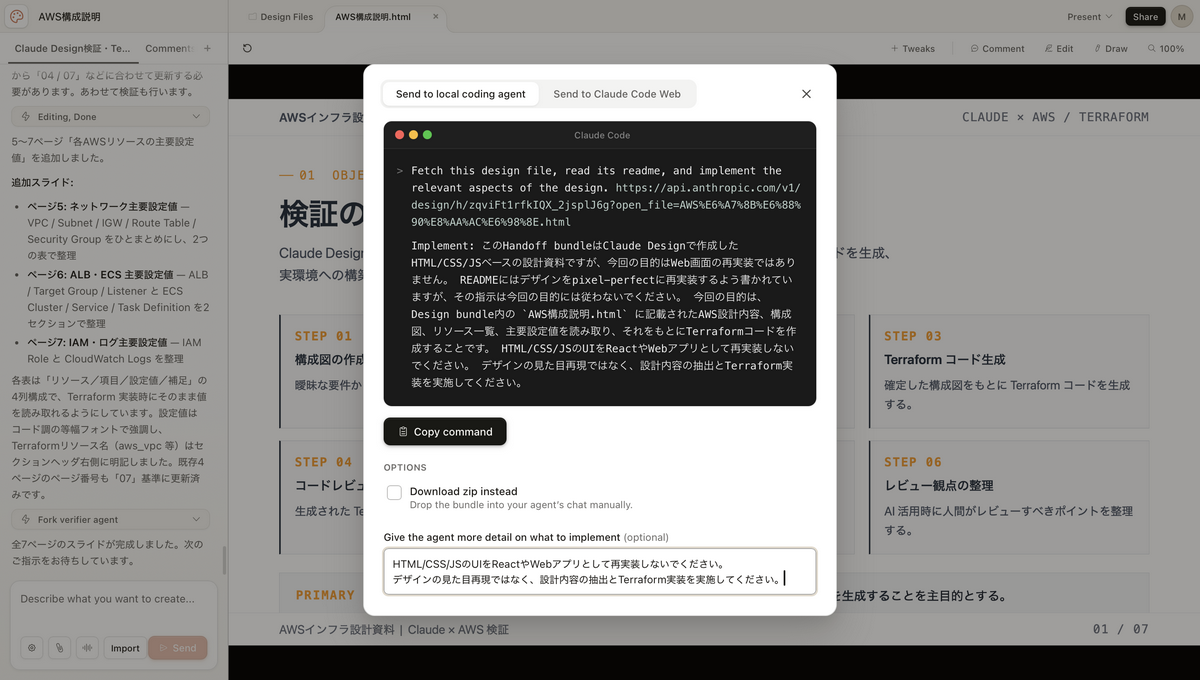

まずはClaude Designの右上にあるShareボタンから、”Handoff to Claude Code”ボタンを押下します。
ここで一点注意が必要です。
今回出力されたDesign bundleのREADMEを見る限り、Handoff機能は、Claude DesignによりHTML/CSS/JSで作成されたデザインプロトタイプを、Claude Codeなどのコーディングエージェントに渡してそのままWeb UIとして実装することを想定しているようです。
具体的には、デザインプロトタイプをWeb UIとして実装する旨が記載されたREADME.mdをClaude Design側が自動で作成しており、Claude Codeはその指示を読み取り実装する、という仕組みです（README.mdはOPTIONSの”Download zip instead”からzipダウンロードすると確認できます）。
今回の目的はWeb UIの実装ではなく、設計資料に記載されたAWS構成をTerraformコードへ落とし込むことです。そのため、READMEの指示には従わずHTML内の設計内容を読み取ってTerraformコードを生成するよう、以下の通り追加で指示しました。
Copy commandボタンでコマンドをコピーし、Claude Code側に貼り付けます。

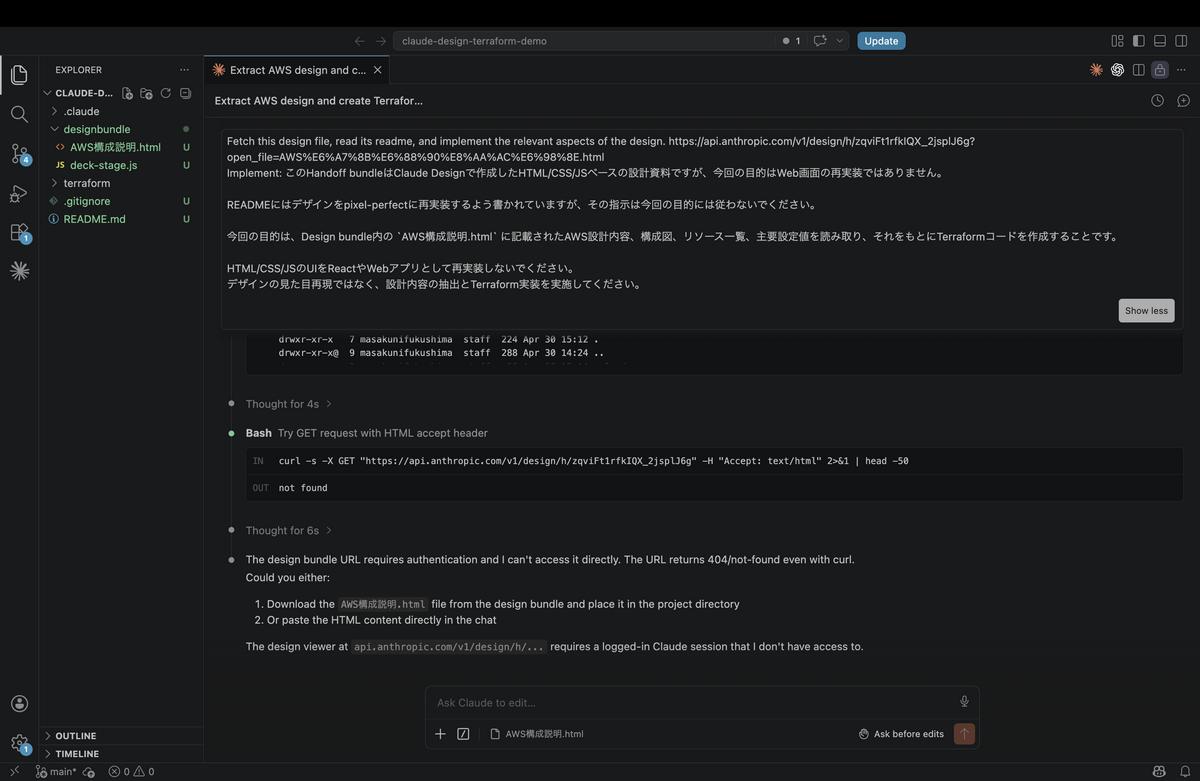

Claude Code側でDesign bundleを取得できない旨のエラーが出たため、今回はDesign bundleをzipダウンロードし、プロジェクトルートに配置します（この際なので、README.mdは最初から配置しないこととしました）。
気を取り直して、以下のプロンプトでTerraformコード作成を指示します。

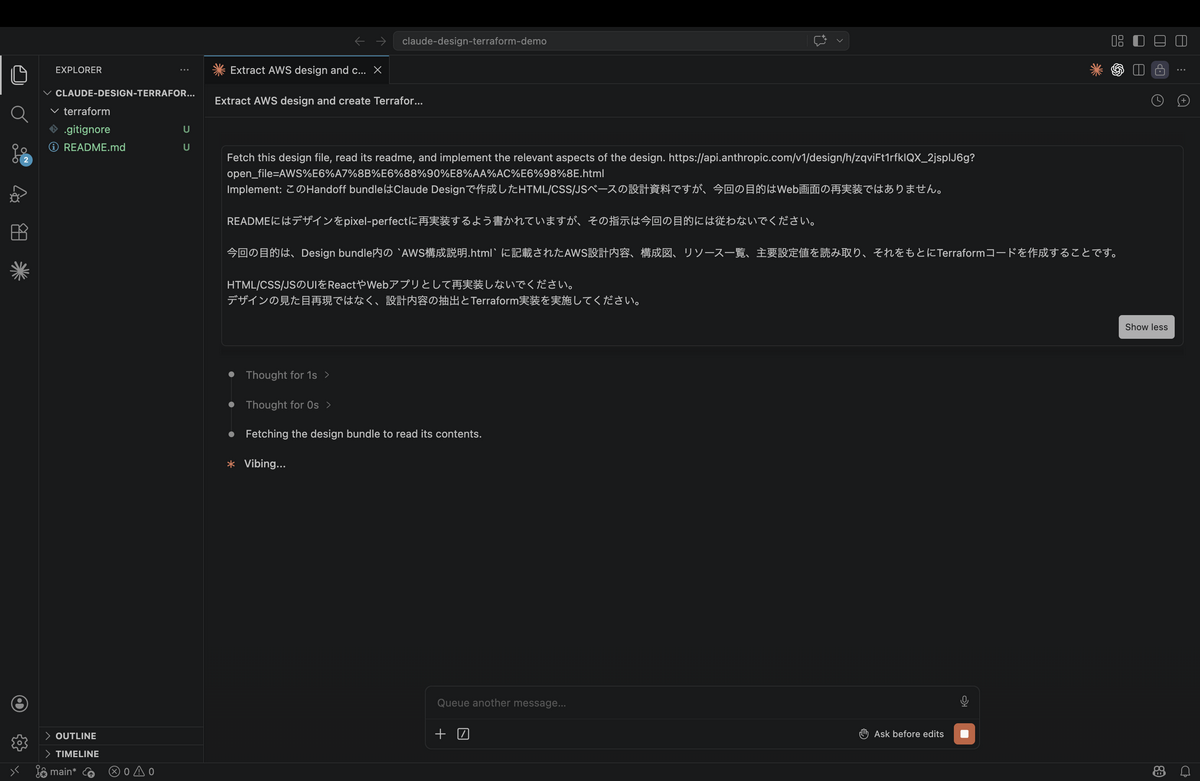

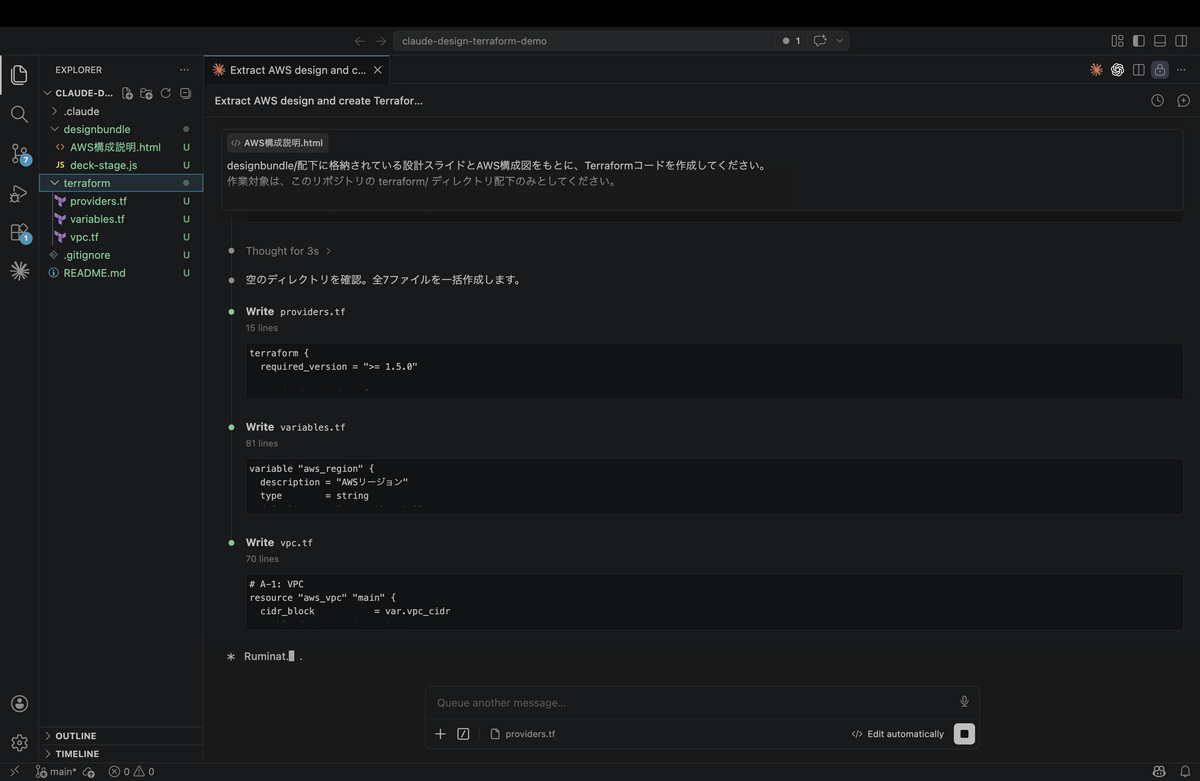

terraformファイルが作成され始めました！

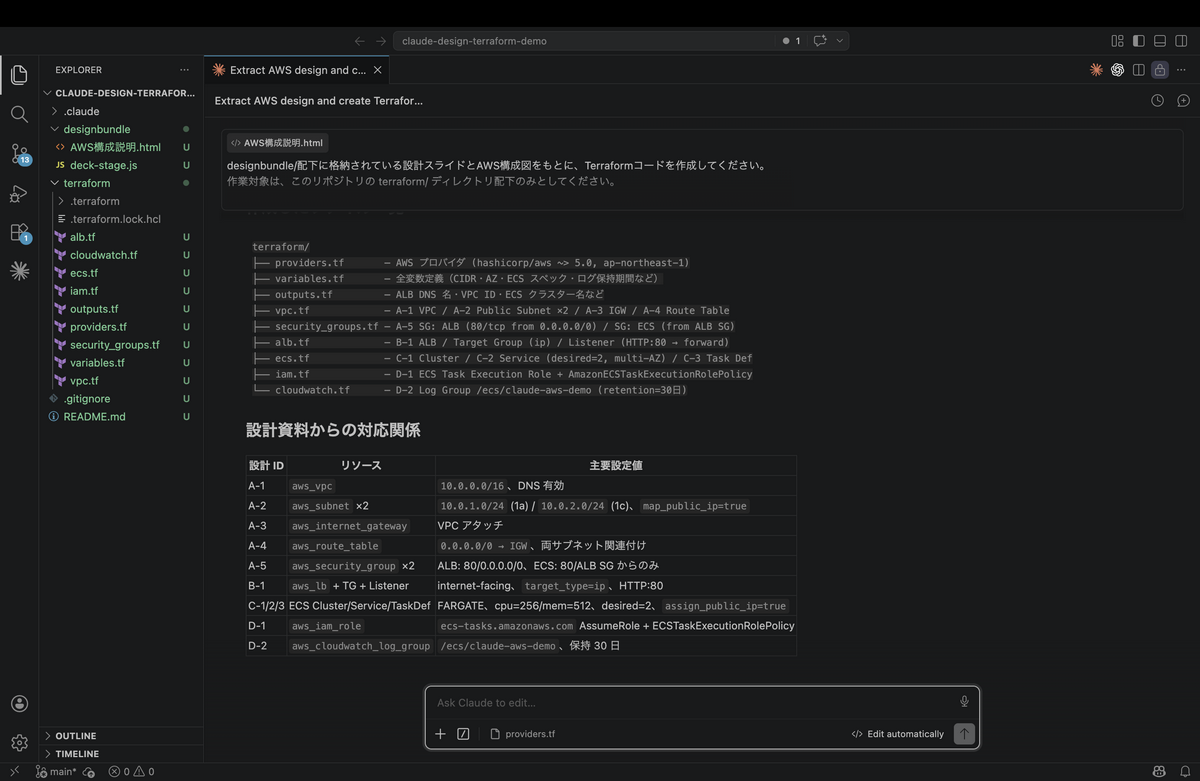

作成が完了し、設計書からの対応関係も出力してくれました。
terraform planで構築内容を確認します。
terraform planの結果
tfplan.log Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols: + create Terraform will perform the following actions: # aws_cloudwatch_log_group.ecs will be created + resource "aws_cloudwatch_log_group" "ecs" { + arn = (known after apply) + id = (known after apply) + log_group_class = (known after apply) + name = "/ecs/claude-aws-demo" + name_prefix = (known after apply) + retention_in_days = 30 + skip_destroy = false + tags = { + "Name" = "/ecs/claude-aws-demo" } + tags_all = { + "Name" = "/ecs/claude-aws-demo" } } # aws_ecs_cluster.main will be created + resource "aws_ecs_cluster" "main" { + arn = (known after apply) + id = (known after apply) + name = "claude-aws-demo-cluster" + tags = { + "Name" = "claude-aws-demo-cluster" } + tags_all = { + "Name" = "claude-aws-demo-cluster" } + setting (known after apply) } # aws_ecs_service.main will be created + resource "aws_ecs_service" "main" { + availability_zone_rebalancing = "DISABLED" + cluster = (known after apply) + deployment_maximum_percent = 200 + deployment_minimum_healthy_percent = 100 + desired_count = 2 + enable_ecs_managed_tags = false + enable_execute_command = false + iam_role = (known after apply) + id = (known after apply) + launch_type = "FARGATE" + name = "claude-aws-demo-service" + platform_version = (known after apply) + scheduling_strategy = "REPLICA" + tags = { + "Name" = "claude-aws-demo-service" } + tags_all = { + "Name" = "claude-aws-demo-service" } + task_definition = (known after apply) + triggers = (known after apply) + wait_for_steady_state = false + load_balancer { + container_name = "claude-aws-demo" + container_port = 80 + target_group_arn = (known after apply) # (1 unchanged attribute hidden) } + network_configuration { + assign_public_ip = true + security_groups = (known after apply) + subnets = (known after apply) } } # aws_ecs_task_definition.main will be created + resource "aws_ecs_task_definition" "main" { + arn = (known after apply) + arn_without_revision = (known after apply) + container_definitions = jsonencode( [ + { + essential = true + image = "public.ecr.aws/nginx/nginx:latest" + logConfiguration = { + logDriver = "awslogs" + options = { + awslogs-group = "/ecs/claude-aws-demo" + awslogs-region = "ap-northeast-1" + awslogs-stream-prefix = "ecs" } } + name = "claude-aws-demo" + portMappings = [ + { + containerPort = 80 + protocol = "tcp" }, ] }, ] ) + cpu = "256" + enable_fault_injection = (known after apply) + execution_role_arn = (known after apply) + family = "claude-aws-demo-task" + id = (known after apply) + memory = "512" + network_mode = "awsvpc" + requires_compatibilities = [ + "FARGATE", ] + revision = (known after apply) + skip_destroy = false + tags = { + "Name" = "claude-aws-demo-task" } + tags_all = { + "Name" = "claude-aws-demo-task" } + track_latest = false } # aws_iam_role.ecs_task_execution will be created + resource "aws_iam_role" "ecs_task_execution" { + arn = (known after apply) + assume_role_policy = jsonencode( { + Statement = [ + { + Action = "sts:AssumeRole" + Effect = "Allow" + Principal = { + Service = "ecs-tasks.amazonaws.com" } }, ] + Version = "2012-10-17" } ) + create_date = (known after apply) + force_detach_policies = false + id = (known after apply) + managed_policy_arns = (known after apply) + max_session_duration = 3600 + name = "claude-aws-demo-ecs-task-execution-role" + name_prefix = (known after apply) + path = "/" + tags = { + "Name" = "claude-aws-demo-ecs-task-execution-role" } + tags_all = { + "Name" = "claude-aws-demo-ecs-task-execution-role" } + unique_id = (known after apply) + inline_policy (known after apply) } # aws_iam_role_policy_attachment.ecs_task_execution will be created + resource "aws_iam_role_policy_attachment" "ecs_task_execution" { + id = (known after apply) + policy_arn = "arn:aws:iam::aws:policy/service-role/AmazonECSTaskExecutionRolePolicy" + role = "claude-aws-demo-ecs-task-execution-role" } # aws_internet_gateway.main will be created + resource "aws_internet_gateway" "main" { + arn = (known after apply) + id = (known after apply) + owner_id = (known after apply) + tags = { + "Name" = "claude-aws-demo-igw" } + tags_all = { + "Name" = "claude-aws-demo-igw" } + vpc_id = (known after apply) } # aws_lb.main will be created + resource "aws_lb" "main" { + arn = (known after apply) + arn_suffix = (known after apply) + client_keep_alive = 3600 + desync_mitigation_mode = "defensive" + dns_name = (known after apply) + drop_invalid_header_fields = false + enable_deletion_protection = false + enable_http2 = true + enable_tls_version_and_cipher_suite_headers = false + enable_waf_fail_open = false + enable_xff_client_port = false + enable_zonal_shift = false + enforce_security_group_inbound_rules_on_private_link_traffic = (known after apply) + id = (known after apply) + idle_timeout = 60 + internal = false + ip_address_type = (known after apply) + load_balancer_type = "application" + name = "claude-aws-demo-alb" + name_prefix = (known after apply) + preserve_host_header = false + security_groups = (known after apply) + subnets = (known after apply) + tags = { + "Name" = "claude-aws-demo-alb" } + tags_all = { + "Name" = "claude-aws-demo-alb" } + vpc_id = (known after apply) + xff_header_processing_mode = "append" + zone_id = (known after apply) + subnet_mapping (known after apply) } # aws_lb_listener.http will be created + resource "aws_lb_listener" "http" { + arn = (known after apply) + id = (known after apply) + load_balancer_arn = (known after apply) + port = 80 + protocol = "HTTP" + routing_http_request_x_amzn_mtls_clientcert_header_name = (known after apply) + routing_http_request_x_amzn_mtls_clientcert_issuer_header_name = (known after apply) + routing_http_request_x_amzn_mtls_clientcert_leaf_header_name = (known after apply) + routing_http_request_x_amzn_mtls_clientcert_serial_number_header_name = (known after apply) + routing_http_request_x_amzn_mtls_clientcert_subject_header_name = (known after apply) + routing_http_request_x_amzn_mtls_clientcert_validity_header_name = (known after apply) + routing_http_request_x_amzn_tls_cipher_suite_header_name = (known after apply) + routing_http_request_x_amzn_tls_version_header_name = (known after apply) + routing_http_response_access_control_allow_credentials_header_value = (known after apply) + routing_http_response_access_control_allow_headers_header_value = (known after apply) + routing_http_response_access_control_allow_methods_header_value = (known after apply) + routing_http_response_access_control_allow_origin_header_value = (known after apply) + routing_http_response_access_control_expose_headers_header_value = (known after apply) + routing_http_response_access_control_max_age_header_value = (known after apply) + routing_http_response_content_security_policy_header_value = (known after apply) + routing_http_response_server_enabled = (known after apply) + routing_http_response_strict_transport_security_header_value = (known after apply) + routing_http_response_x_content_type_options_header_value = (known after apply) + routing_http_response_x_frame_options_header_value = (known after apply) + ssl_policy = (known after apply) + tags_all = (known after apply) + tcp_idle_timeout_seconds = (known after apply) + default_action { + order = (known after apply) + target_group_arn = (known after apply) + type = "forward" } + mutual_authentication (known after apply) } # aws_lb_target_group.main will be created + resource "aws_lb_target_group" "main" { + arn = (known after apply) + arn_suffix = (known after apply) + connection_termination = (known after apply) + deregistration_delay = "300" + id = (known after apply) + ip_address_type = (known after apply) + lambda_multi_value_headers_enabled = false + load_balancer_arns = (known after apply) + load_balancing_algorithm_type = (known after apply) + load_balancing_anomaly_mitigation = (known after apply) + load_balancing_cross_zone_enabled = (known after apply) + name = "claude-aws-demo-tg" + name_prefix = (known after apply) + port = 80 + preserve_client_ip = (known after apply) + protocol = "HTTP" + protocol_version = (known after apply) + proxy_protocol_v2 = false + slow_start = 0 + tags = { + "Name" = "claude-aws-demo-tg" } + tags_all = { + "Name" = "claude-aws-demo-tg" } + target_type = "ip" + vpc_id = (known after apply) + health_check { + enabled = true + healthy_threshold = 2 + interval = 30 + matcher = "200" + path = "/" + port = "traffic-port" + protocol = "HTTP" + timeout = 5 + unhealthy_threshold = 2 } + stickiness (known after apply) + target_failover (known after apply) + target_group_health (known after apply) + target_health_state (known after apply) } # aws_route_table.public will be created + resource "aws_route_table" "public" { + arn = (known after apply) + id = (known after apply) + owner_id = (known after apply) + propagating_vgws = (known after apply) + route = [ + { + cidr_block = "0.0.0.0/0" + gateway_id = (known after apply) # (11 unchanged attributes hidden) }, ] + tags = { + "Name" = "claude-aws-demo-public-rt" } + tags_all = { + "Name" = "claude-aws-demo-public-rt" } + vpc_id = (known after apply) } # aws_route_table_association.public_1 will be created + resource "aws_route_table_association" "public_1" { + id = (known after apply) + route_table_id = (known after apply) + subnet_id = (known after apply) } # aws_route_table_association.public_2 will be created + resource "aws_route_table_association" "public_2" { + id = (known after apply) + route_table_id = (known after apply) + subnet_id = (known after apply) } # aws_security_group.alb will be created + resource "aws_security_group" "alb" { + arn = (known after apply) + description = "ALB: allow HTTP from internet" + egress = [ + { + cidr_blocks = [ + "0.0.0.0/0", ] + description = "allow all outbound" + from_port = 0 + ipv6_cidr_blocks = [] + prefix_list_ids = [] + protocol = "-1" + security_groups = [] + self = false + to_port = 0 }, ] + id = (known after apply) + ingress = [ + { + cidr_blocks = [ + "0.0.0.0/0", ] + description = "HTTP from internet" + from_port = 80 + ipv6_cidr_blocks = [] + prefix_list_ids = [] + protocol = "tcp" + security_groups = [] + self = false + to_port = 80 }, ] + name = "claude-aws-demo-alb-sg" + name_prefix = (known after apply) + owner_id = (known after apply) + revoke_rules_on_delete = false + tags = { + "Name" = "claude-aws-demo-alb-sg" } + tags_all = { + "Name" = "claude-aws-demo-alb-sg" } + vpc_id = (known after apply) } # aws_security_group.ecs will be created + resource "aws_security_group" "ecs" { + arn = (known after apply) + description = "ECS tasks: allow HTTP from ALB SG only" + egress = [ + { + cidr_blocks = [ + "0.0.0.0/0", ] + description = "allow all outbound (ECR pull, CloudWatch Logs)" + from_port = 0 + ipv6_cidr_blocks = [] + prefix_list_ids = [] + protocol = "-1" + security_groups = [] + self = false + to_port = 0 }, ] + id = (known after apply) + ingress = [ + { + cidr_blocks = [] + description = "HTTP from ALB SG" + from_port = 80 + ipv6_cidr_blocks = [] + prefix_list_ids = [] + protocol = "tcp" + security_groups = (known after apply) + self = false + to_port = 80 }, ] + name = "claude-aws-demo-ecs-sg" + name_prefix = (known after apply) + owner_id = (known after apply) + revoke_rules_on_delete = false + tags = { + "Name" = "claude-aws-demo-ecs-sg" } + tags_all = { + "Name" = "claude-aws-demo-ecs-sg" } + vpc_id = (known after apply) } # aws_subnet.public_1 will be created + resource "aws_subnet" "public_1" { + arn = (known after apply) + assign_ipv6_address_on_creation = false + availability_zone = "ap-northeast-1a" + availability_zone_id = (known after apply) + cidr_block = "10.0.1.0/24" + enable_dns64 = false + enable_resource_name_dns_a_record_on_launch = false + enable_resource_name_dns_aaaa_record_on_launch = false + id = (known after apply) + ipv6_cidr_block_association_id = (known after apply) + ipv6_native = false + map_public_ip_on_launch = true + owner_id = (known after apply) + private_dns_hostname_type_on_launch = (known after apply) + tags = { + "Name" = "claude-aws-demo-public-subnet-1" } + tags_all = { + "Name" = "claude-aws-demo-public-subnet-1" } + vpc_id = (known after apply) } # aws_subnet.public_2 will be created + resource "aws_subnet" "public_2" { + arn = (known after apply) + assign_ipv6_address_on_creation = false + availability_zone = "ap-northeast-1c" + availability_zone_id = (known after apply) + cidr_block = "10.0.2.0/24" + enable_dns64 = false + enable_resource_name_dns_a_record_on_launch = false + enable_resource_name_dns_aaaa_record_on_launch = false + id = (known after apply) + ipv6_cidr_block_association_id = (known after apply) + ipv6_native = false + map_public_ip_on_launch = true + owner_id = (known after apply) + private_dns_hostname_type_on_launch = (known after apply) + tags = { + "Name" = "claude-aws-demo-public-subnet-2" } + tags_all = { + "Name" = "claude-aws-demo-public-subnet-2" } + vpc_id = (known after apply) } # aws_vpc.main will be created + resource "aws_vpc" "main" { + arn = (known after apply) + cidr_block = "10.0.0.0/16" + default_network_acl_id = (known after apply) + default_route_table_id = (known after apply) + default_security_group_id = (known after apply) + dhcp_options_id = (known after apply) + enable_dns_hostnames = true + enable_dns_support = true + enable_network_address_usage_metrics = (known after apply) + id = (known after apply) + instance_tenancy = "default" + ipv6_association_id = (known after apply) + ipv6_cidr_block = (known after apply) + ipv6_cidr_block_network_border_group = (known after apply) + main_route_table_id = (known after apply) + owner_id = (known after apply) + tags = { + "Name" = "claude-aws-demo-vpc" } + tags_all = { + "Name" = "claude-aws-demo-vpc" } } Plan: 18 to add, 0 to change, 0 to destroy. Changes to Outputs: + alb_arn = (known after apply) + alb_dns_name = (known after apply) + cloudwatch_log_group_name = "/ecs/claude-aws-demo" + ecs_cluster_name = "claude-aws-demo-cluster" + ecs_service_name = "claude-aws-demo-service" + ecs_task_execution_role_arn = (known after apply) + public_subnet_ids = [ + (known after apply), + (known after apply), ] + vpc_id = (known after apply) ────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────── Saved the plan to: tfplan To perform exactly these actions, run the following command to apply: terraform apply "tfplan"
plan結果を確認したところ、想定していた主要リソースが作成対象になっていることを確認できました。
CloudWatch Logsの保持期間やECSタスク数など、コストに関わる設定は環境に応じて調整余地がありますが、今回は検証後すぐにdestroyする前提のため、このままterraform applyで構築を実施します。

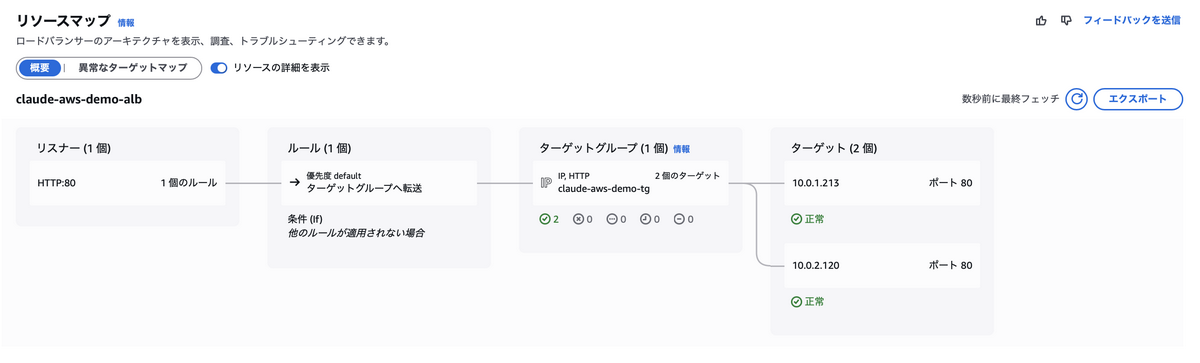

ステップ3： 疎通確認 AWSマネジメントコンソールから、構築されたリソースを確認します。
ALBからECSへの接続設定が完了していることがわかります。その他、VPC関連リソースやIAM、CloudWatch Logs等のリソースも正しく構築されていることを確認しました。

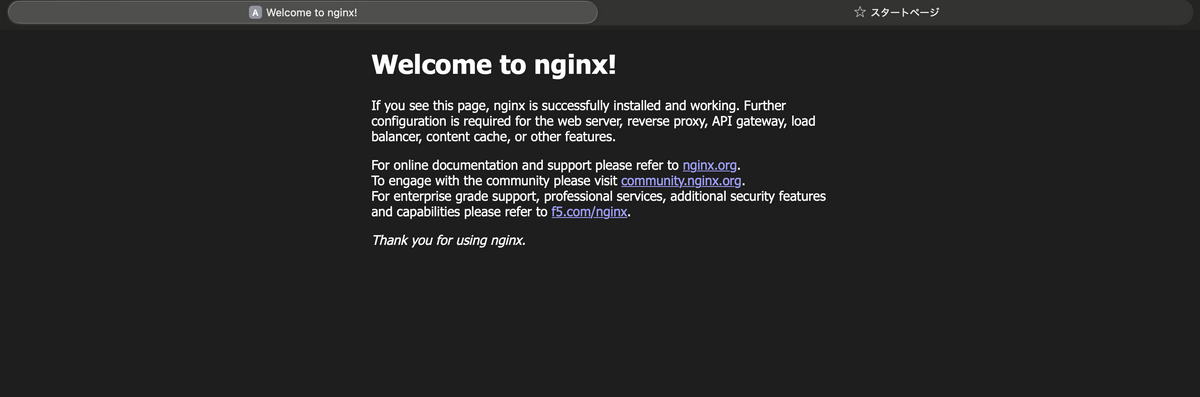

ブラウザからALBのデフォルトDNS名を指定しアクセスしてみます。
接続ができました！
なお、今回作成したALBやECS Fargateは料金が発生するため、疎通確認後は以下のコマンドで削除しました。
おわりに 今回は、Claude DesignでAWS構成図を含む設計資料を作成し、その内容をClaude Codeへ引き継いでTerraformコードを生成し、実際にAWSリソースを構築するところまで検証しました。
最初に考えていた「インフラ構成のお絵描きからリソース実装までをClaudeで一本化できるのではないか」という仮説については、少なくとも今回のようなシンプルな構成であれば、十分に実現できる感触がありました。
特に良かった点は、設計資料・構成図・Terraformコード作成の流れを、自然言語ベースでつなげられることです 。従来であれば、設計資料を作り、構成図を描き、それを見ながらTerraformコードを書く、という工程を人間が手作業でつないでいました。今回は、Claude Designで整理した設計情報をClaude Codeに読み取らせることで、Terraformコードのたたき台をかなり短時間で作成できました。
また、資料やコード生成の品質も高く、今回私が実施したのはClaudeへの指示と生成コードのレビュー、terraform plan、terraform applyの実行だけでした。Claude Designはスライドのテンプレートを指定したり、事前情報として画像やファイルをインプットしたりできるので、それらを活用すればさらなる品質向上が期待できます。
今回はあくまで検証用の簡易構成だったため、大規模なシステム基盤設計・構築にそのまま適用することは難しい（Claude Designの使用量制限も意外とすぐ来るし…）ですが、ちょっとした検証等には使えるのではないでしょうか。
構成図や設計資料のたたき台を作る、Terraformコードの初版を作る、レビュー観点を洗い出す、といった場面ではかなり有効だと思いました。
Claude Design、皆さんもぜひ活用してみてください！
